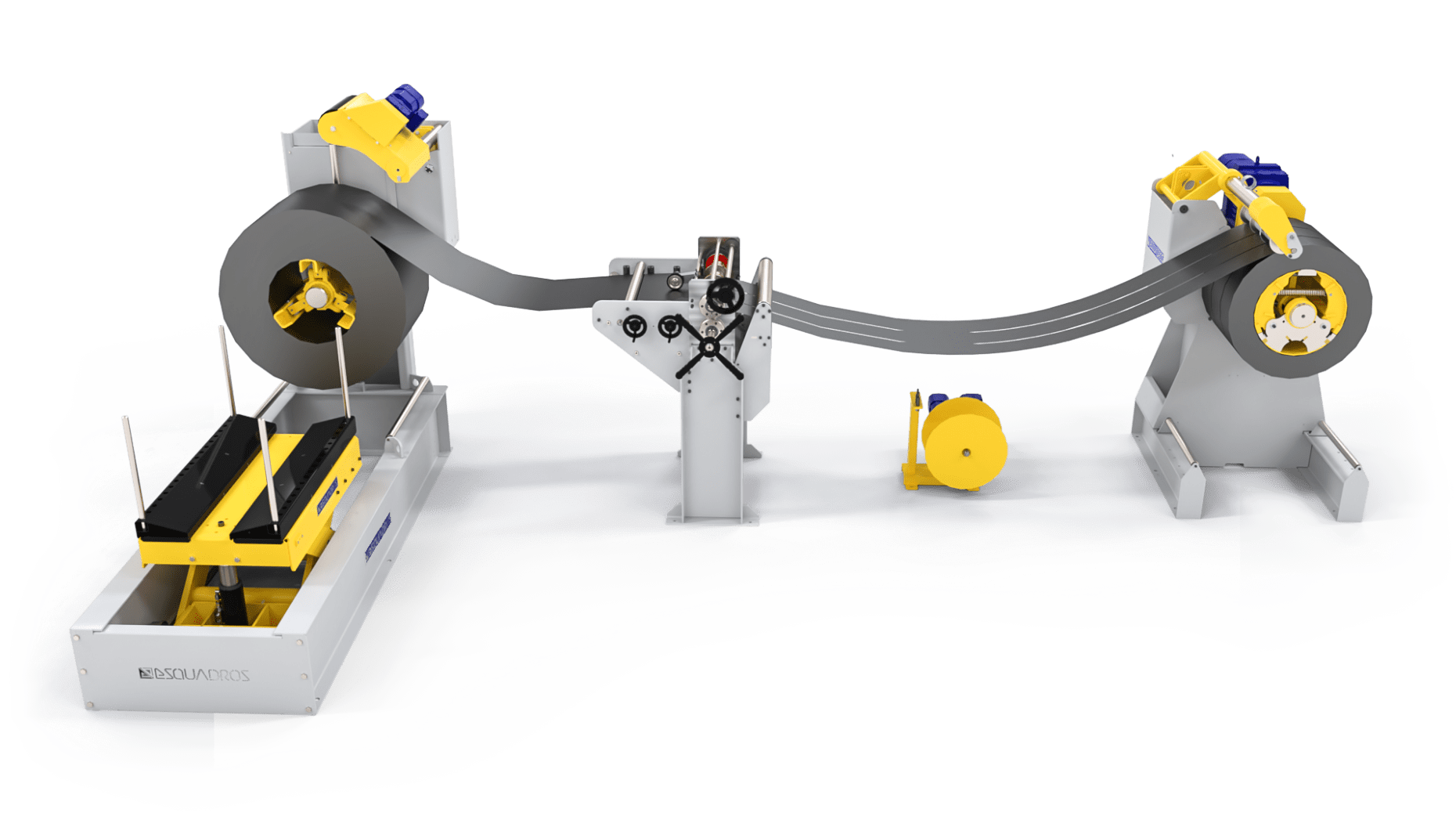

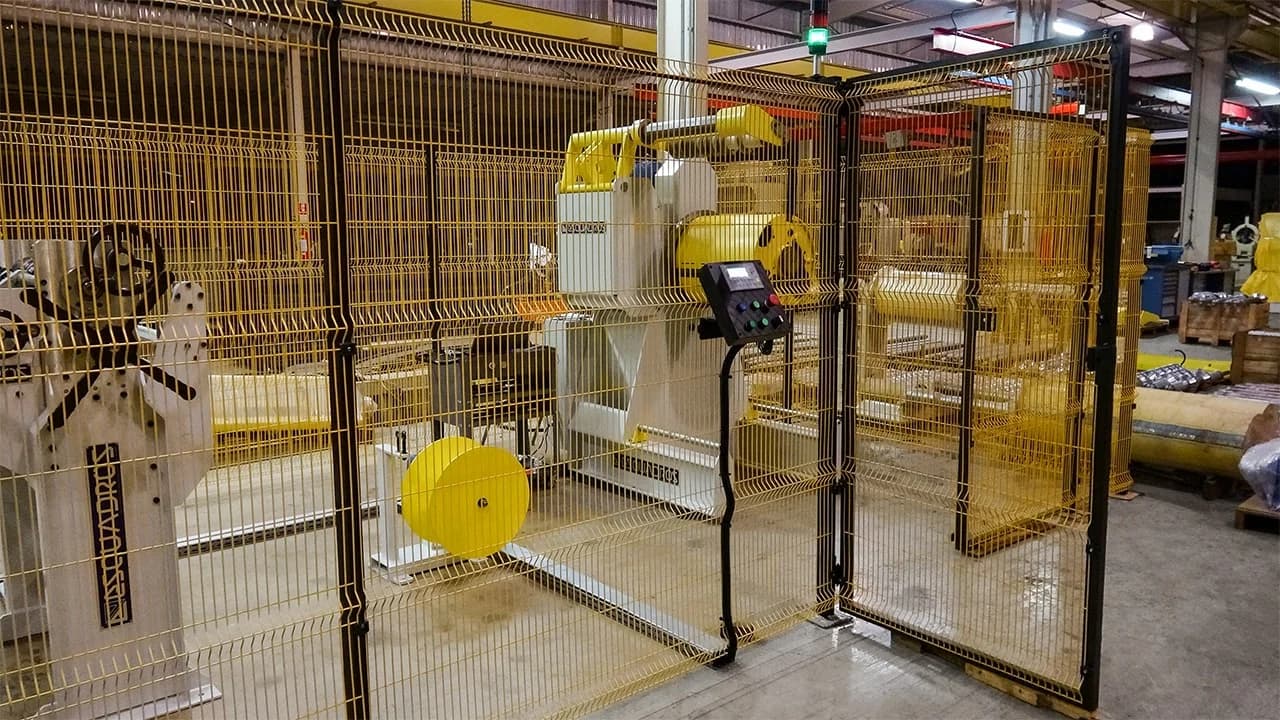

SLITTING LINES
LCL 600.1 ESQUADROS®
PROCESS COILS FROM 0,45 MM TO 1,60 MM THICK
SLITTING LINES - LCL 600.1 ESQUADROS®
TECHNICAL INFO
| EQUIPMENT: | SLITTING LINE 600.1 |
| DECOILER CAPACITY(ton): | 6 TONS |
| MAXIMUM COIL WIDTH: | 600 mm |
| MAXIMUM SHEET THICKNESS: | 1,60 mm |
| MINIMUM SHEET THICKNESS: | 0,45 mm |
| MAXIMUM OUTFLOW LIMIT (L.E): | 240 N/mm2 |
| MAXIMUM RESISTANCE LIMIT (L.R): | 360 N/mm2 |
| SPEED: | 25-60 m/min |
| ELECTRONIC POSITIONING SYSTEM: | Closed loop |
| VOLTAGE/ FREQUENCY/ WORK CYCLE: | 220 V 3F / 60Hz / 8h |
| LINE PAINTING: | epoxi cinza ral 7035 - YELLOW 5Y8/12 |

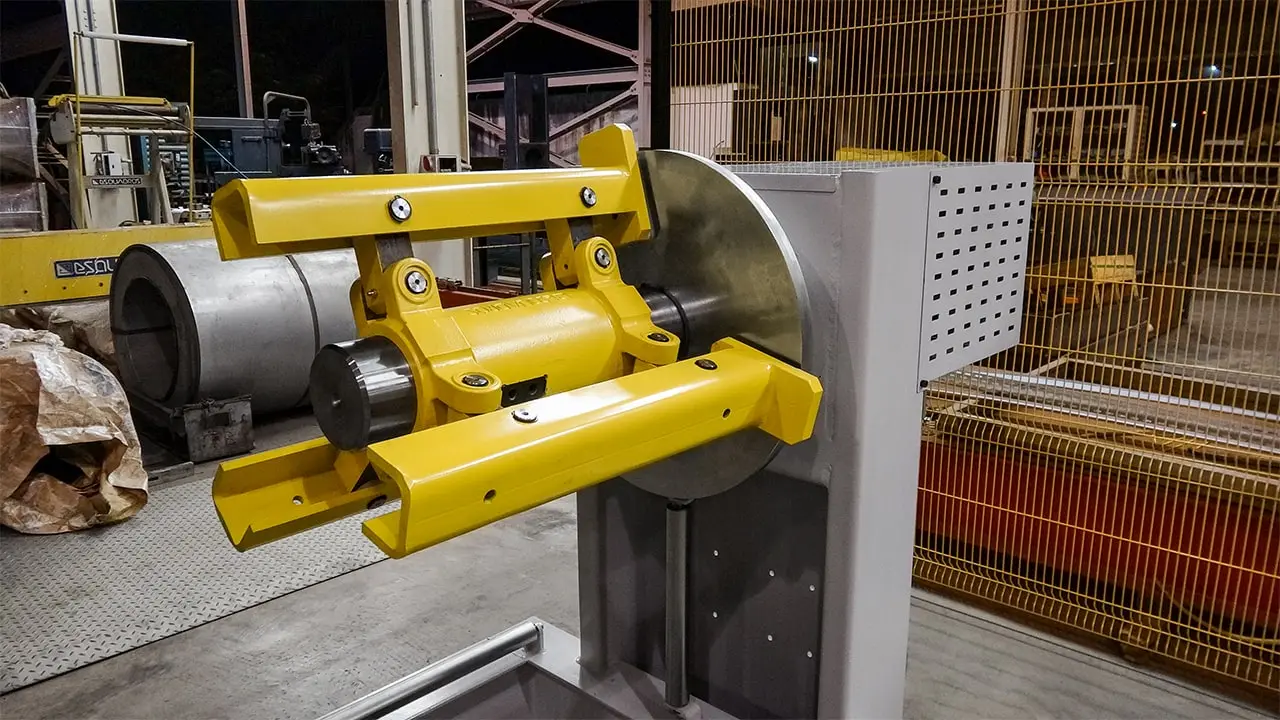

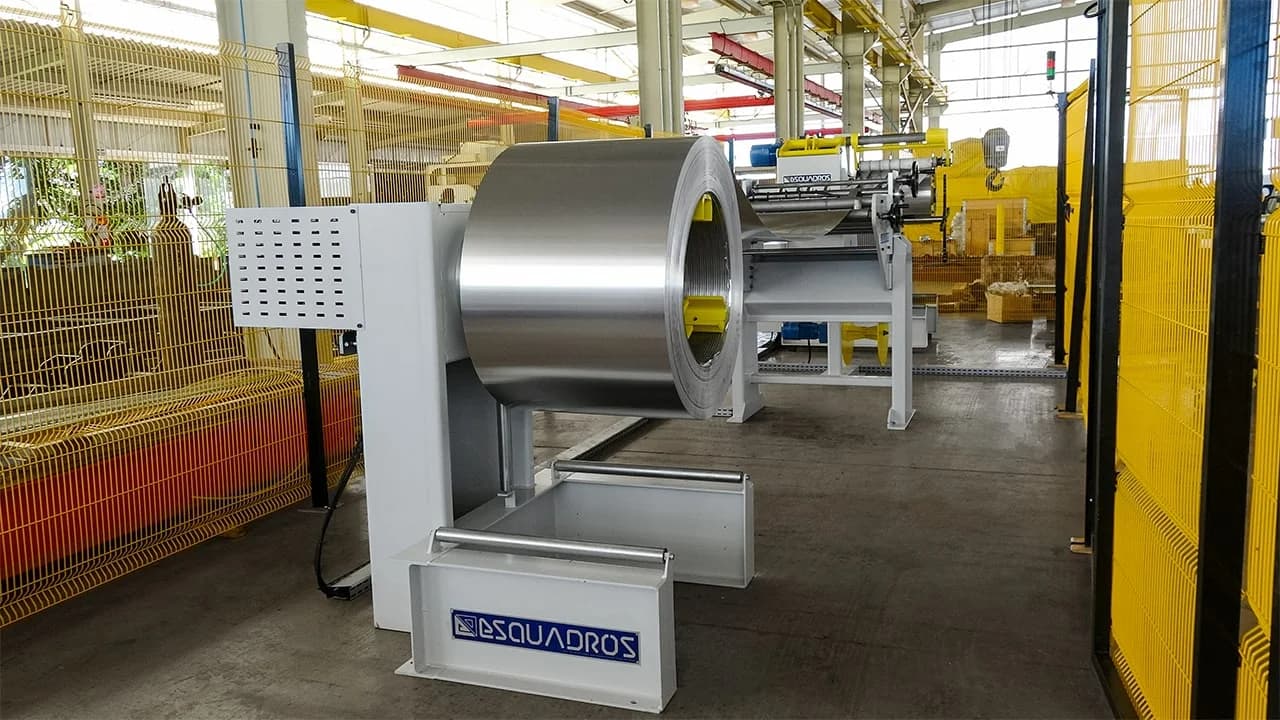

ESSENTIAL DECOILER - 6 TON
The decoiler has a robust, welded steel frame and a counter-supporting support. The mandrel is made up of three paddles that guarantee perfect coil fixation. Roller bearings. By turning a single nut on the main shaft, the mandrel expands in diameter and adjusts to the internal diameter of the coil, ensuring a centralized hold. The machine is epoxy painted in standard gray ral 7035 and yellow 5Y8/12.
| Load capacity: | 6.000 kgf |
| Maximum external diameter of the coil: | 1.500 mm |
| Coil inside diameter: | 20" |
| Drive: | Dragging |
| Braking: | Manual regulation |
