DECOILERS LINE

ESQUADROS®

SET UP YOUR MACHINE

Gallery image decoilers - Esquadros® — PHOTOS

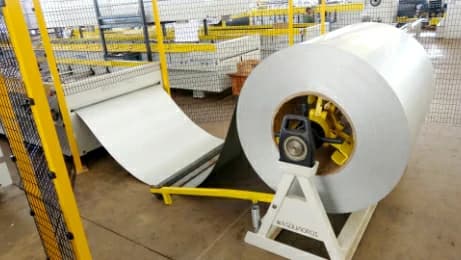

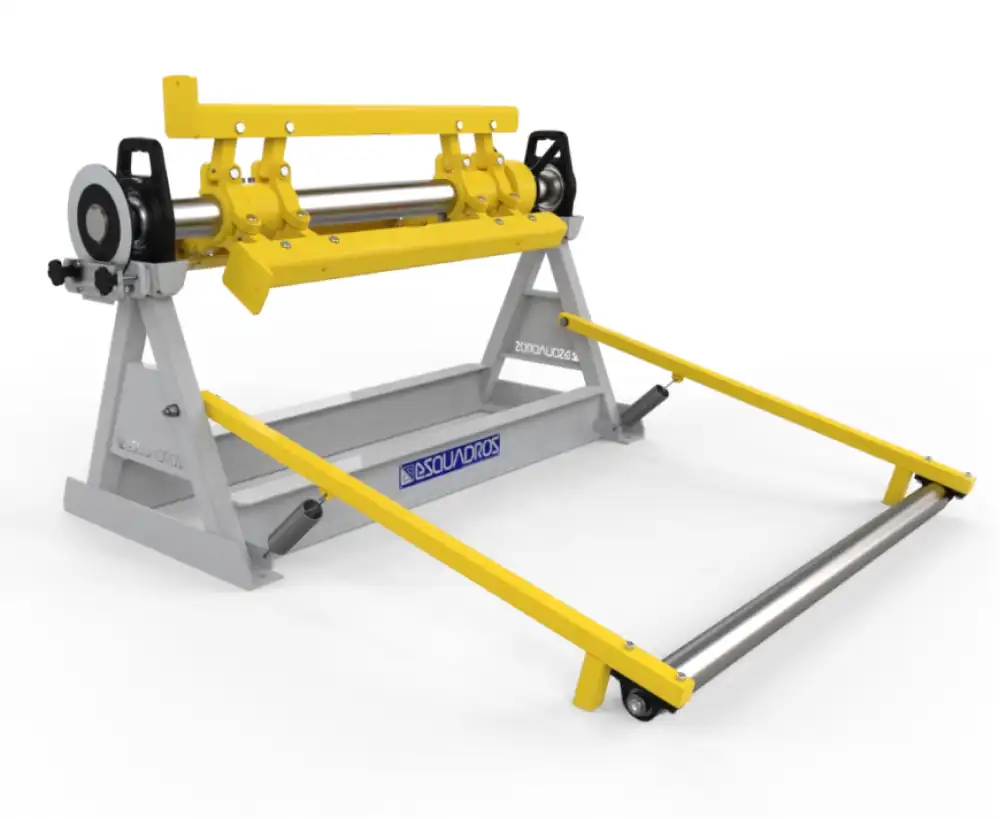

ESQUADROS ESSENTIAL DECOILER

• Affordable price;
• High quality mechanical construction;
• Roller bearings;

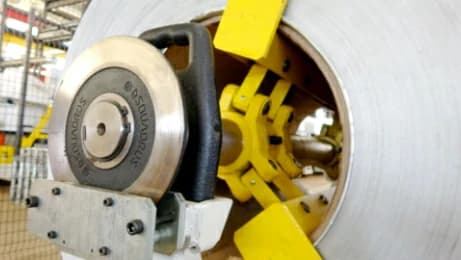

• Disc brake;

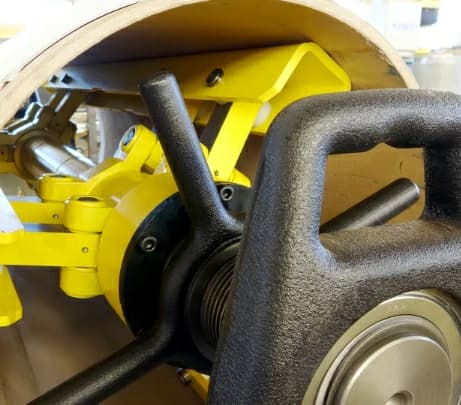

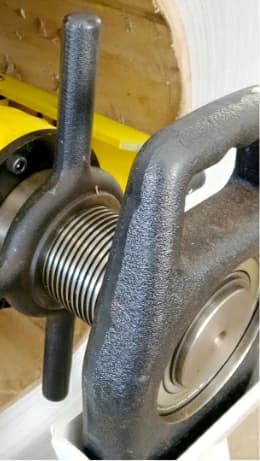

• Synchronized mandrel expansion;
• Perfect coil fixation;
• Ergonomic design;

ESQUADROS ESSENTIAL DECOILER
Decoiler load capacity:	10 ton
Useful sheet entry width:	1.260 mm
Maximum external coil diameter:	1.260 mm
Internal diameter of mandrel:	20"
Mandrel drive:	Manual
Drive:	Arraste
Brake adjustment:	Manual

COMPARE MODELS

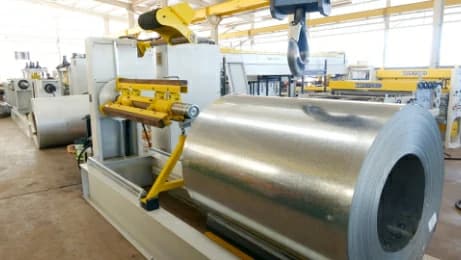

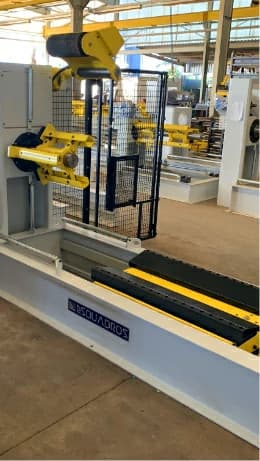

ESQUADROS PRO® DECOILER

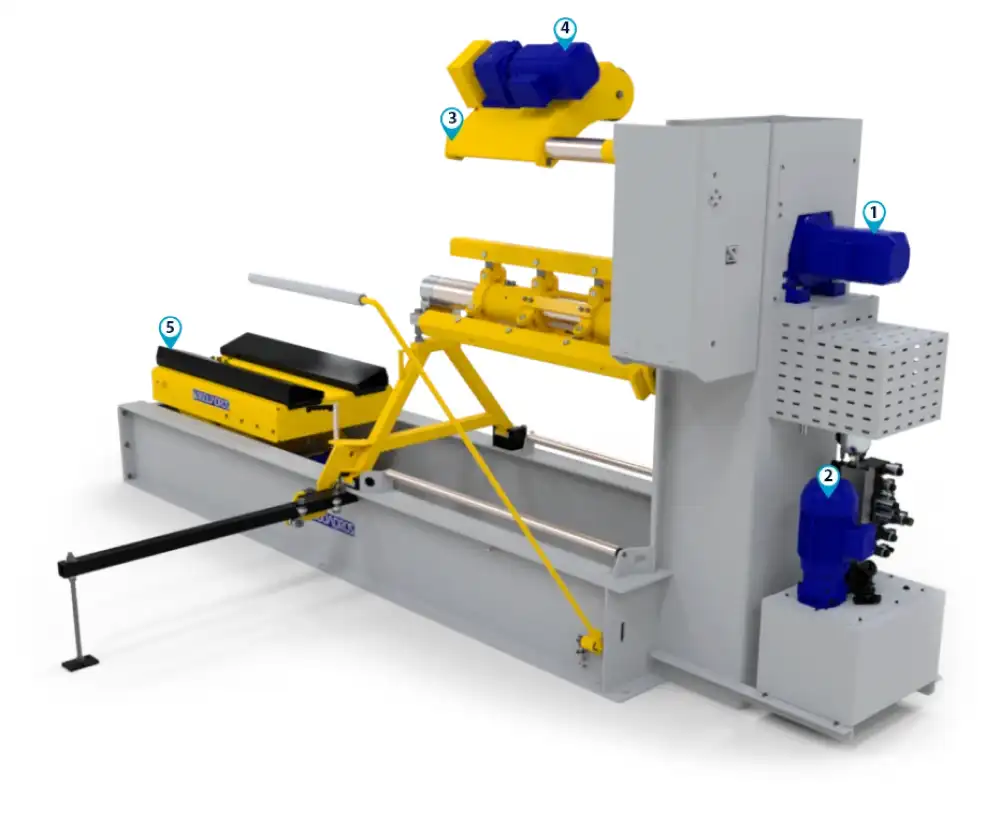

OPCIONALS:

P1 - Ideal for better performance
1. - Gearedmotor and panel, speed control;
2. - Hydraulic expansion of the mandrel;

P2 - Ideal for faster setup

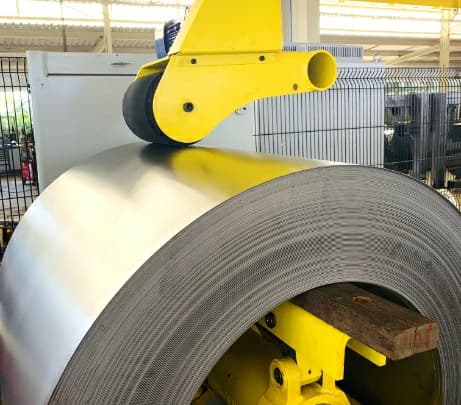

3. - Hydraulic Peeler;
4. - Peeler motorization;
5. - Loading trolley;

• High quality mechanical construction;
• Electronic drive control;
• Roller bearings;
• Electromagnetic brake;
• Hydraulic mandrel expansion;
• Perfect coil fixation;
• Support for upgrade;

ESQUADROS PRO® DECOILER
Decoiler load capacity:	15 ton
Useful sheet entry width:	1.260/1.300/1.600 mm
Maximum external coil diameter:	1.500 mm
Internal diameter of mandrel:	20"
Mandrel drive:	Hydraulic
Drive:	Gearedmotor
Brake adjustment:	Electromagnetic

COMPARE MODELS

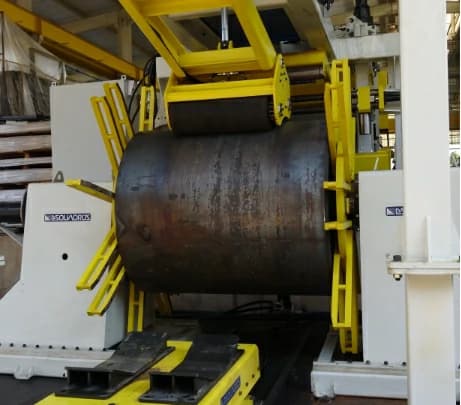

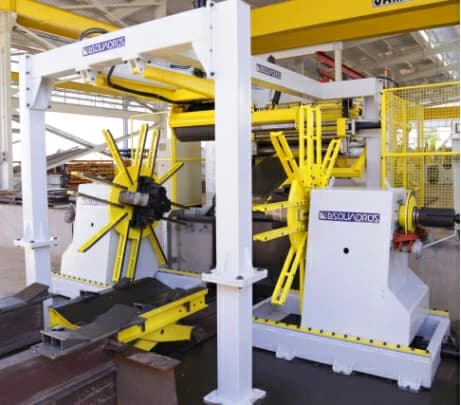

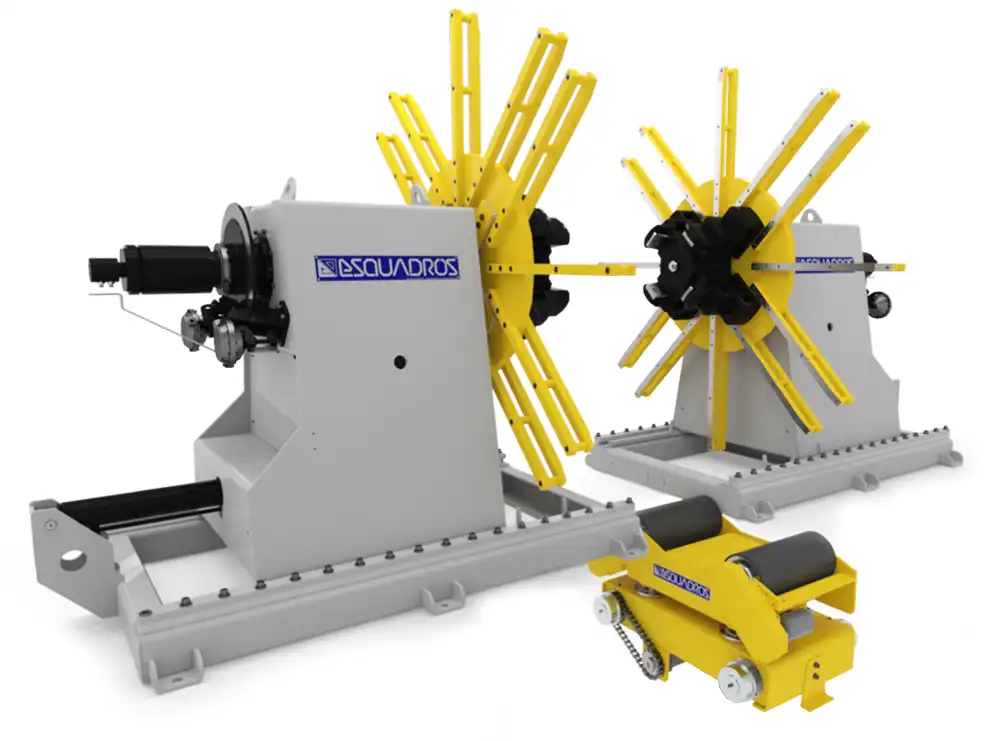

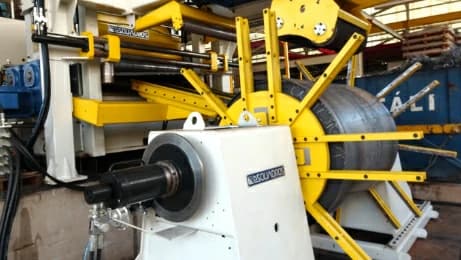

ESQUADROS DUAL® DECOILER

• Affordable price;
• High quality mechanical construction;
• Roller bearings;
• Disc brake;
• Synchronized mandrel expansion;
• Perfect coil fixation;
• Ergonomic design;

ESQUADROS DUAL® DECOILER
Decoiler load capacity:	20/25/30 ton
Useful sheet entry width:	1.600 mm
Maximum external coil diameter:	2000 mm
Internal diameter of mandrel:	20/24/30 pol"
Mandrel drive:	Hydraulic
Drive:	Hydraulic
Brake adjustment:	Pneumatic

COMPARE MODELS

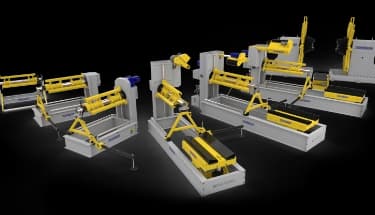

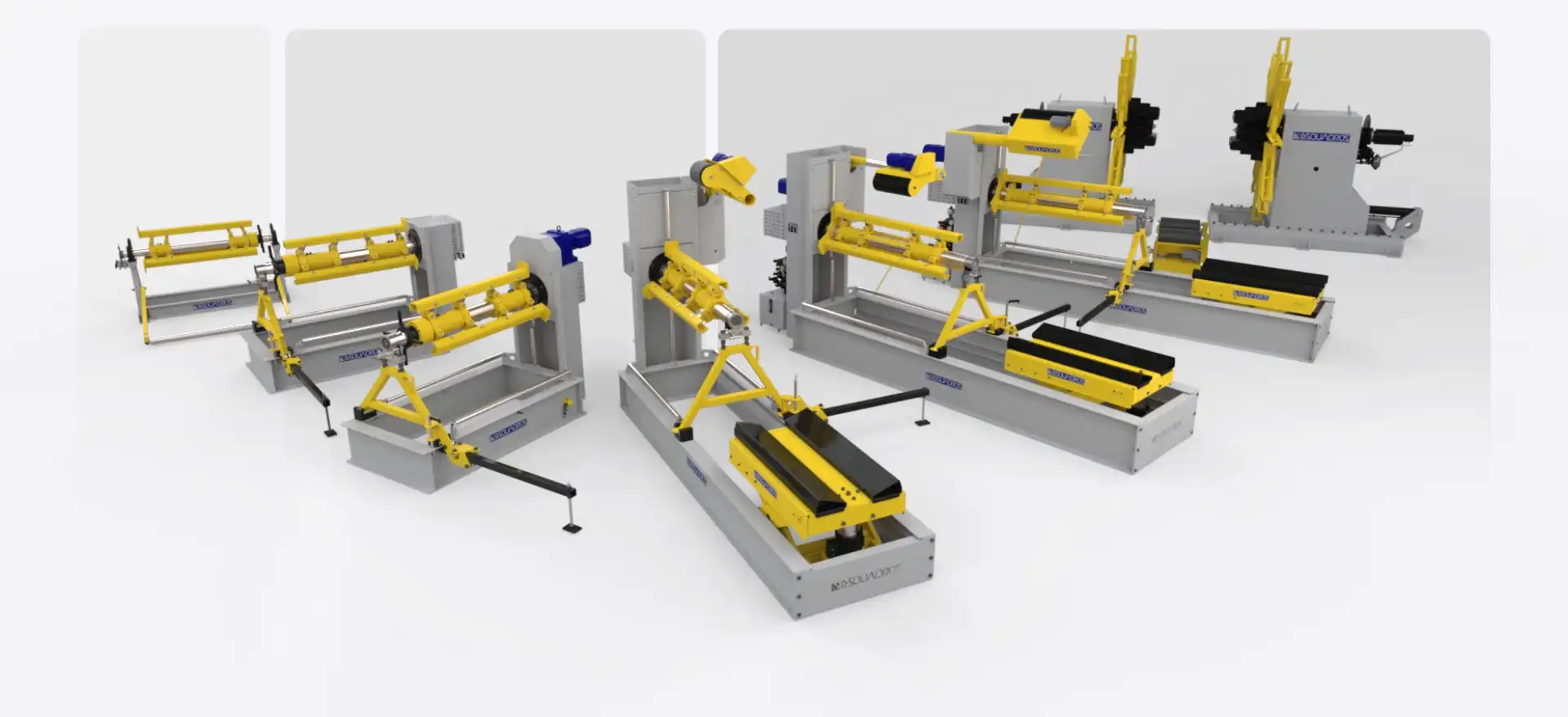

DISCOVER OUR COMPLETE RANGE

ESQUADROS
ESSENTIAL®

ESQUADROS
PRO®

ESQUADROS
PREMIUM®

Complete line esquadros decoilers models - mobile

MODEL	ESQUADROS PRO® - 600	ESQUADROS ESSENTIAL®	ESQUADROS PRO® - 1200	ESQUADROS PRO® - 1300	ESQUADROS PRO® - 1600	ESQUADROS DUAL®
Load capacity	6 ton	10 ton	15 ton	15 ton	15 ton	20/25/30 ton
Useful mandrel width	600 mm	1260 mm	1200 mm	1300 mm	1600 mm	1600 mm
Speed	15/25 m/min	15 m/min	15/25 m/min	15/25 m/min	15/20/25/30	25 m/min
Voltage/Frequency/Cycle	380 V 3F / 60 Hz/ 8h	N/A	380 V 3F / 60 Hz/ 8h	380 V 3F / 60 Hz/ 8h	380 V 3F / 60 Hz/ 8h	380 V 3F / 60 Hz/ 8h
Mandrel inside diameter	20 pol	20 pol	20 pol	20 pol	20 pol	20/24/30 pol
Maximum external diameter of the coil	Ø1500	Ø1200	Ø1500	Ø1500	Ø1500	Ø2000
Drive	Drag/Gearmotor	Drag	Drag/Gearmotor	Drag/Gearmotor	Drag/Gearmotor	Hydraulic
Braking	Manual/Gearmotor	Manual	Electromagnetic	Electromagnetic	Electromagnetic	Pneumatic
Mandrel Drive	Manual/Hydraulic	Manual	Manual/Hydraulic	Manual/Hydraulic	Manual/Hydraulic	Hydraulic

WHY IS ESQUADROS® THE BEST CHOICE?

• Because it is a company that provides permanent technical assistance;
• Because for 36 years Esquadros® has fulfilled all its commitments to customers;
• Because the machines are totally safe according to NR12;
• Because the designs of its machines are technological and perfect;
• Because they are machines tested to exhaustion to ensure quality and performance;
• Because the components are from brands such as Gerdau, Arcelor Mital, Siemens, SEW, SICK, Schmersal, Belgo Bekaert, etc;
• Because the customer receives the machine within the contracted period;
• Because the prices have the best cost x benefit ratio and the machines pay for themselves;
• Because Esquadros® guarantees the exchange for a superior model according to the needs of the customer's business growth;
• Because they have all the accreditations and financing available in Brazil:
Finame - Leasing - Proger - Cartão BNDES - FCO - FINEP - BANCO DO NORDESTE
