RECOILING SET

ESQUADROS®

Models of rewinding set - Esquadros® — MODELS

RECOILING
SET - CR4

RECOILING
SET - CR3

RECOILING
SET - CR2

RECOILING
SET - CR1

COMPARISON TABLE OF THE RECOILING SETS

	CR1 ESQUADROS	CR2 ESQUADROS	CR3 ESQUADROS	CR4 ESQUADROS
Decoiler
Load capacity	0,85 ton	6 ton	15 ton	15 ton
Load capacity increase to 3.5 tons		•	•	•
Mandrel cover		•	•	•
Mandrel drive	Mechanical	Hydraulic	Hydraulic	Hydraulic
Coil inside diameter	12” (304,8 mm)	20” (508 mm)	20” (508 mm)	20” (508 mm)
Speed control	Electronic	Electronic	Electronic	Electronic
Number of spacers	05	05	05	11
Unloading trolley	•
Load capacity	•	06 ton	15 ton	15 ton
Longitudinal drive	•	Gearmotor	Gearmotor	Gearmotor
Vertical drive	•	Hydraulic	Hydraulic	Hydraulic

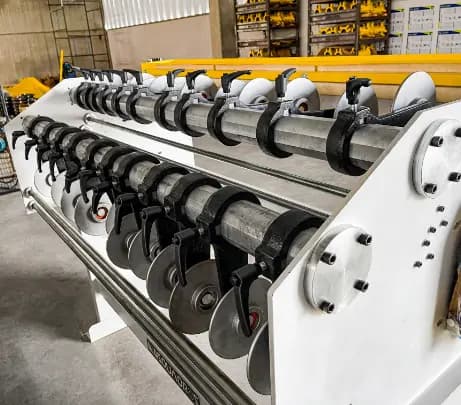

Tensioner
Drive	Mechanical	Mechanical	Pneumatic	Plus Pneumatic
Pneumatic mat	•	•
Pneumatic presser arm	•	•
Number of spacer shafts	01	01	02	02
Number of spacer disks	05 (sliders)	05 (sliders)	10 (sliders)	22 (10 strips)
Output table	•	•
Spacers Assembly Software	•	•

WHY IS ESQUADROS® THE BEST CHOICE?

• Because it is a company that provides permanent technical assistance;
• Because for 36 years Esquadros® has fulfilled all its commitments to customers;
• Because the machines are totally safe according to NR12;
• Because the designs of its machines are technological and perfect;
• Because they are machines tested to exhaustion to ensure quality and performance;
• Because the components are from brands such as Gerdau, Arcelor Mital, Siemens, SEW, SICK, Schmersal, Belgo Bekaert, etc;
• Because the customer receives the machine within the contracted period;
• Because the prices have the best cost x benefit ratio and the machines pay for themselves;
• Because Esquadros® guarantees the exchange for a superior model according to the needs of the customer's business growth;
• Because they have all the accreditations and financing available in Brazil:
Finame - Leasing - Proger - Cartão BNDES - FCO - FINEP - BANCO DO NORDESTE
