LATEST LAUNCH OF THE TUBE
MILL MACHINE LINE - FT ESQUADROS®

The FT-32 to FT-273 models cover dimensions from 10mm to 273mm and feature the most modern technologies, such as the quick change of cylindrical tooling in up to 30 minutes.

Tube mill machine

TECHNICAL SPECIFICATIONS OF THE TUBE
MILL MACHINES- FT ESQUADROS®

MODELTube D.EThicknessSquare and rectangularThicknessSpeed
  • mm
  • mm
  • mm
  • mm
  • m/min
  • FTE-12
  • Ø 4-12
  • 0.2~0.5
  • -
  • -
  • 30~120
  • FTE-16
  • Ø 6-16
  • 0.2~0.8
  • -
  • -
  • 30~120
  • FTE-20
  • Ø 7-20
  • 0.2~1.0
  • -
  • -
  • 30~120
  • FTE-25
  • Ø 9-25.4
  • 0.25~1.2
  • -
  • -
  • 30~120
  • FTE-32
  • FTE-32z
  • Ø 10-31.8
  • 0.25~1.5
  • 0.3~2.0
  • 8*8~25*25
    10*6~30*20
  • 0.25~1.2
  • 0.3~1.5
  • 30~120
  • 30~100
  • FTE-40
  • FTE-40z
  • Ø 12.7-40
  • 0.3~1.8
  • 0.4~2.0
  • 10*10~30*30
    20*10~40*20
  • 0.3~1.5
  • 0.4~1.5
  • 30~110
  • 30~100
  • FTE-50q
  • FTE-50
  • FTE-50z
  • Ø 16-50.8
  • 0.4~1.5
  • 0.5~2.0
  • 0.6~2.5
  • 12,7*12,7~40*40
    20*10~50*25
  • 0.4~1.2
  • 0.5~1.5
  • 0.6~2.0
  • 30~110
  • 30~90
  • 30~80
  • FTE-63q
  • FTE-63
  • FTE-63z
  • Ø 19.05-63.5
  • 0.6~2.0
  • 0.7~3.0
  • 0.8~3.5
  • 15*15~50*50
    20*10~60*30
  • 0.6~1.5
  • 0.7~2.5
  • 0.8~3.0
  • 30~90
  • 30~80
  • 20~70
  • FTE-76q
  • FTE-76
  • FTE-76z
  • Ø 25.4-76.2
  • 0.8~2.5
  • 0.8~3.5
  • 0.8~4.0
  • 20*20~60*60
    35*15~80*40
  • 0.8~2.0
  • 0.8~3.0
  • 0.8~3.5
  • 30~90
  • 30~80
  • 20~70
  • FTE-90q
  • FTE-90
  • FTE-90z
  • Ø 30-90
  • 0.8~3.0
  • 0.8~3.5
  • 0.8~4.0
  • 25*25~70*70
    30*20~80*40
  • 0.8~2.5
  • 0.8~3.0
  • 0.8~3.5
  • 30~90
  • 30~80
  • 20~70
  • FTE-100q
  • FTE-100
  • FTE-100z
  • Ø 31.8-101.6
  • 1.0~3.0
  • 1.0~3.75
  • 1.0~4.25
  • 25*25~80*80
    30*20~100*50
  • 1.0~2.5
  • 1.0~3.0
  • 1.0~3.5
  • 30~90
  • 30~80
  • 20~70
  • FTE-114q
  • FTE-114
  • Ø 35-114.3
  • 1.0~3.0
  • 1.2~4.5
  • 30*30~90*90
    40*20~120*60
  • 1.0~2.5
  • 1.2~4.0
  • 30~80
  • 20~70
  • FTE-127q
  • FTE-127
  • Ø 40-127
  • 1.2~3.5
  • 1.5~5.0
  • 30*30~100*100
    40*20~120*80
  • 1.2~3.0
  • 1.5~4.5
  • 20~70
  • 15~60
  • FTE-140q
  • FTE-140
  • Ø 50.141.3
  • 1.2~4.0
  • 1.5~5.5
  • 40*40~110*110
    50*30~150*70
  • 1.2~3.5
  • 1.5~5.0
  • 15~60
  • 15~60
  • FTE-168q
  • FTE-168
  • Ø 60.168.3
  • 1.5~5.0
  • 2.0~6.0
  • 50*50~130*130
    60*40~160*80
  • 1.5~4.5
  • 2.0~5.5
  • 10~50
  • 10~50
  • FTE-168z
  • Ø 76.2-168.3
  • 2.5~8.0
  • 60*60~130*130
    80*40~160*80
  • 2.5~7.0
  • 10~40
  • FTE-219q
  • FTE-219
  • FTE-219z
  • Ø 89-219.1
  • 2.0~6.0
  • 3.0~8.0
  • 4.0~10.0
  • 70*70~160*160
    100*50~200*100
  • 2.0~5.5
  • 3.0~7.5
  • 4.0~9.0
  • 10~40
  • 10~40
  • 10~40
  • FTE-273
  • FTE-273z
  • Ø 114.3-273
  • 4.0~10.0
  • 4.5~12.0
  • 90*90~200*200
    120*60~260*130
  • 4.0~9.0
  • 4.5~11.0
  • 10~40
  • 10~35

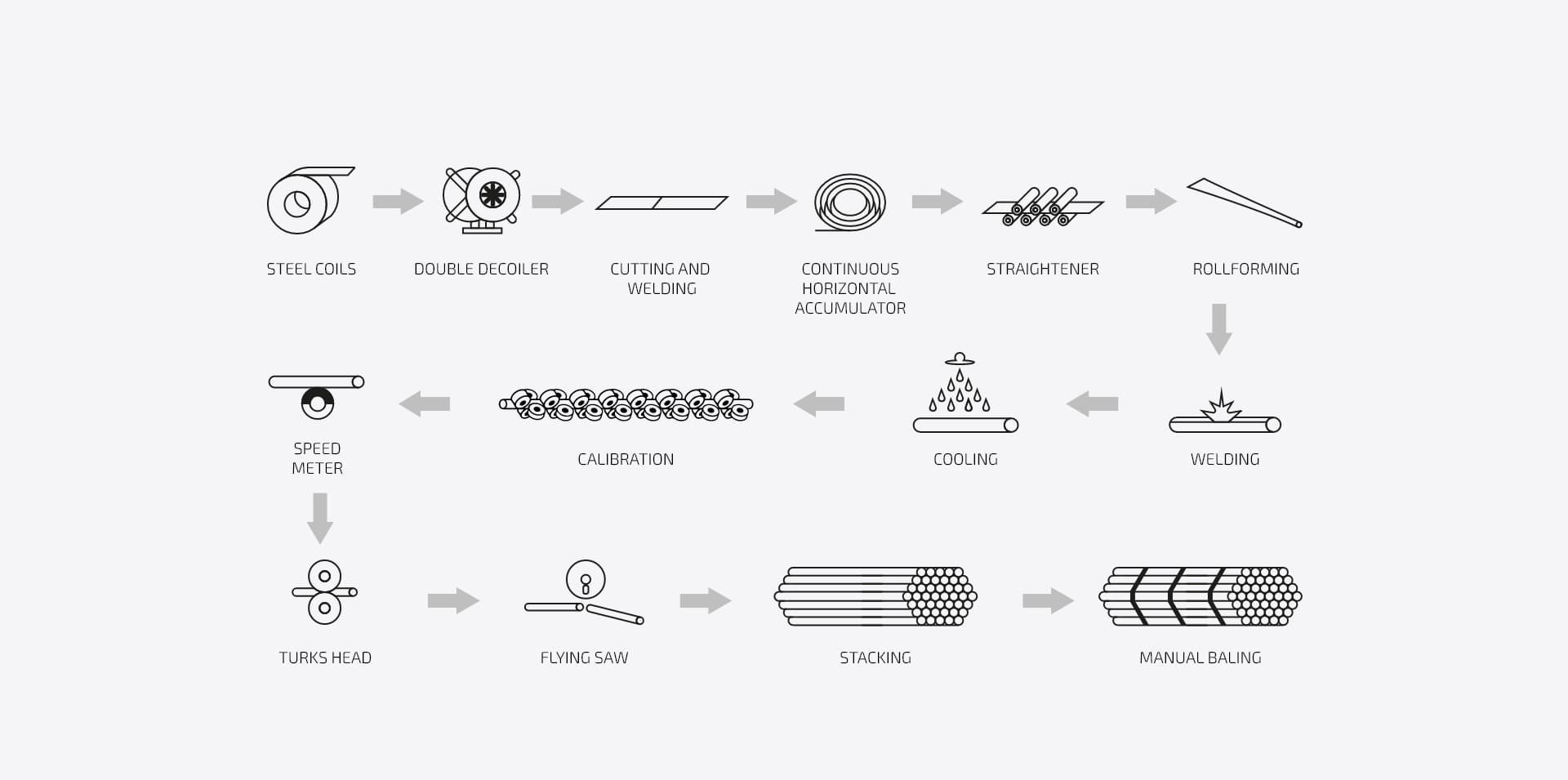

    • Tube mill machine - Line Composition

    LINE COMPOSITION

    Tube Former - Welded Tube Application

    APPLICATION FOR WELDED TUBES

    Tranquilidade com a esquadros

    WHY IS ESQUADROS® THE BEST CHOICE?


    • Because it is a company that provides permanent technical assistance;
    • Because for 36 years Esquadros® has fulfilled all its commitments to customers;
    • Because the machines are totally safe according to NR12;
    • Because the designs of its machines are technological and perfect;
    • Because they are machines tested to exhaustion to ensure quality and performance;
    • Because the components are from brands such as Gerdau, Arcelor Mital, Siemens, SEW, SICK, Schmersal, Belgo Bekaert, etc;
    • Because the customer receives the machine within the contracted period;
    • Because the prices have the best cost x benefit ratio and the machines pay for themselves;
    • Because Esquadros® guarantees the exchange for a superior model according to the needs of the customer's business growth;
    • Because they have all the accreditations and financing available in Brazil:
       Finame - Leasing - Proger - Cartão BNDES - FCO - FINEP - BANCO DO NORDESTE
