SLITTING LINES

LCL 1300/1600.3E ESQUADROS®

PROCESS COILS FROM 0,45 MM TO 3,20 MM THICK

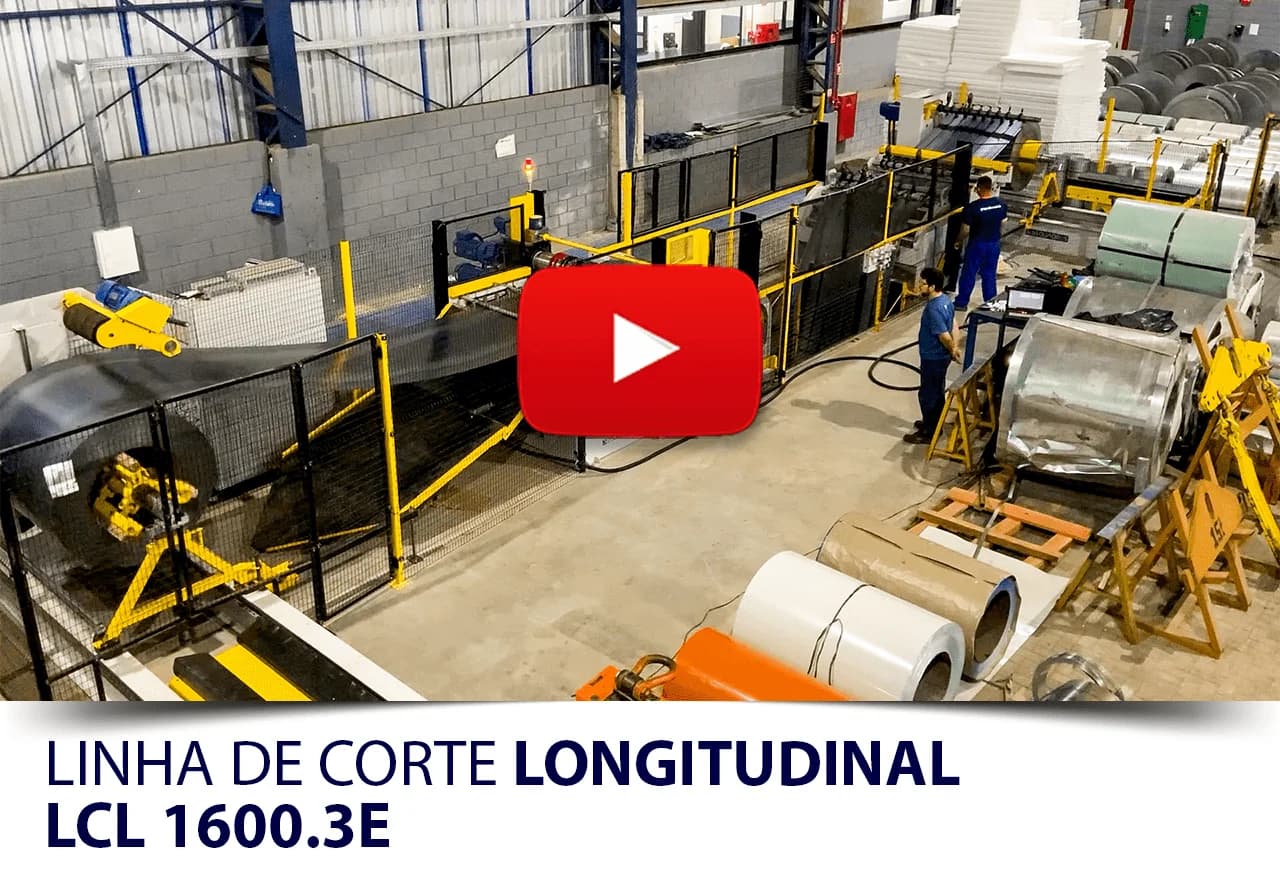

SLITTING LINES - LCL 1300/1600.3E ESQUADROS®

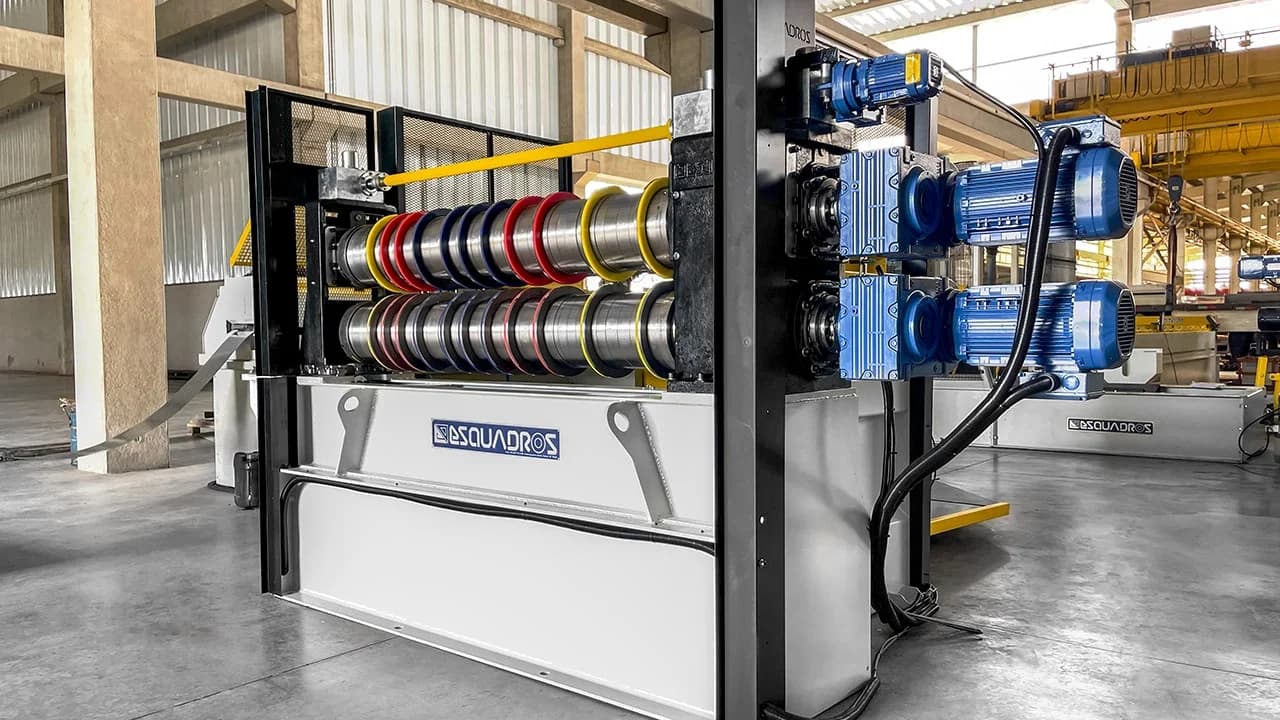

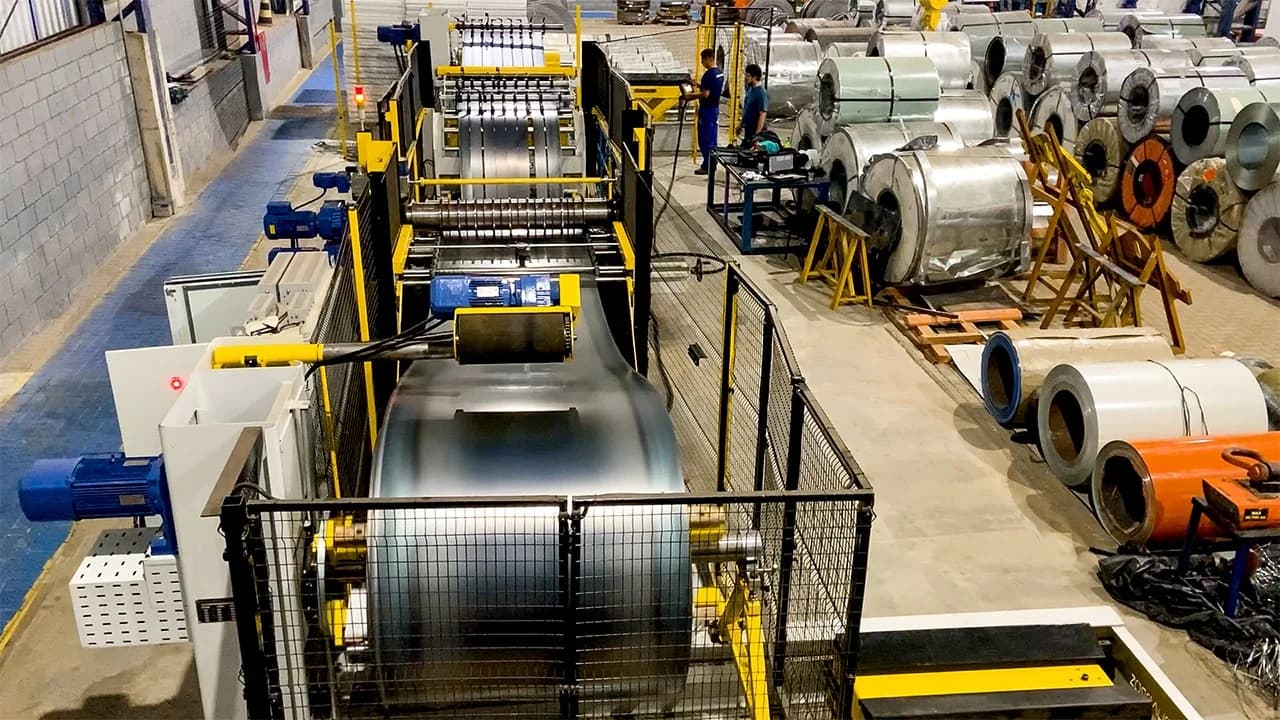

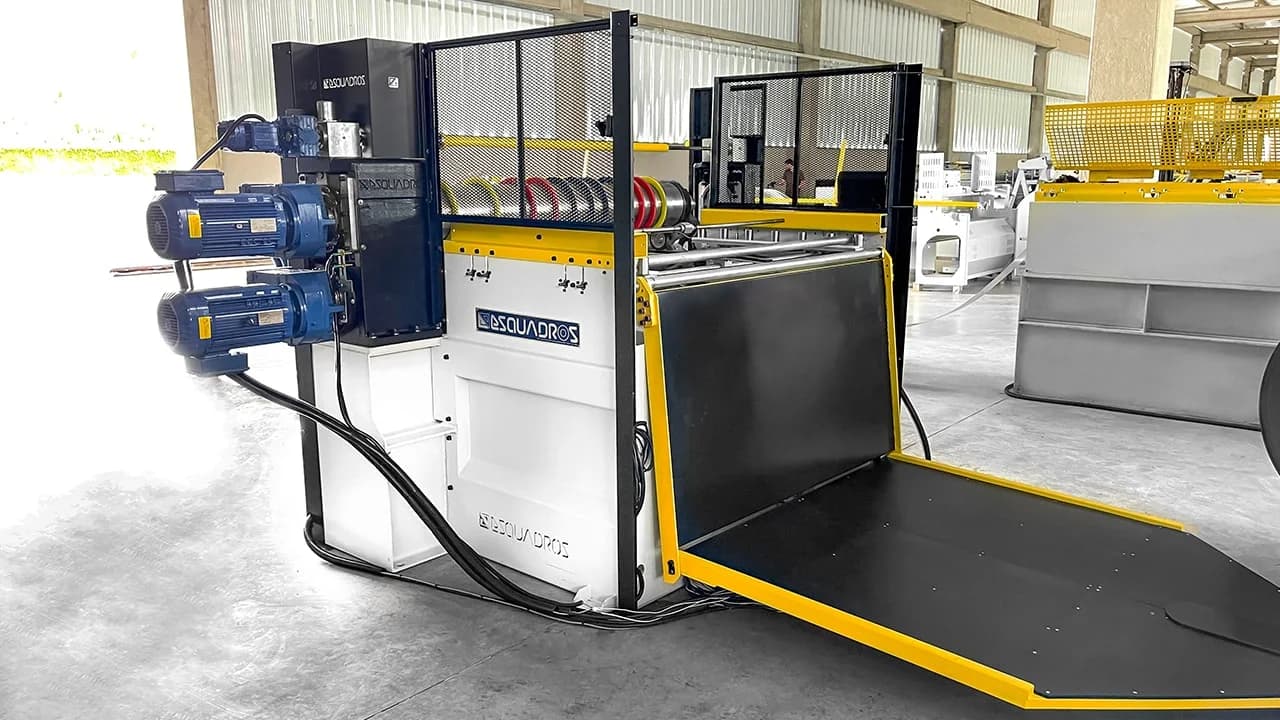

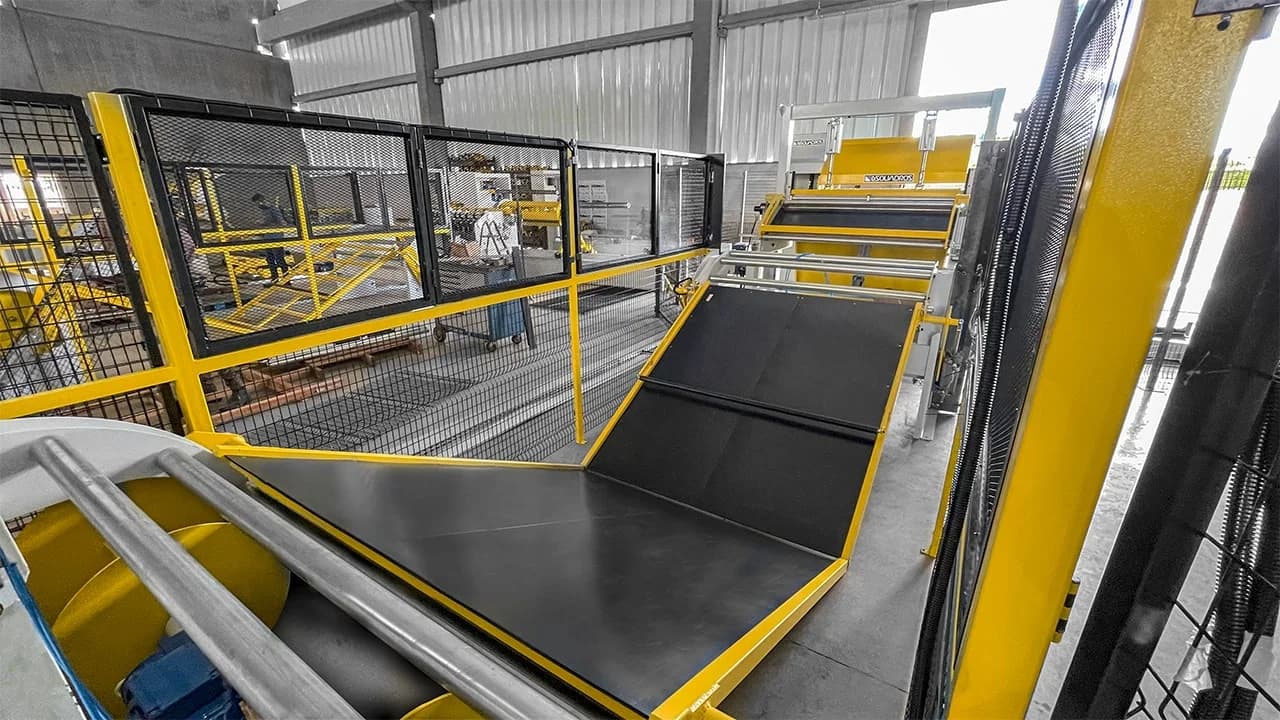

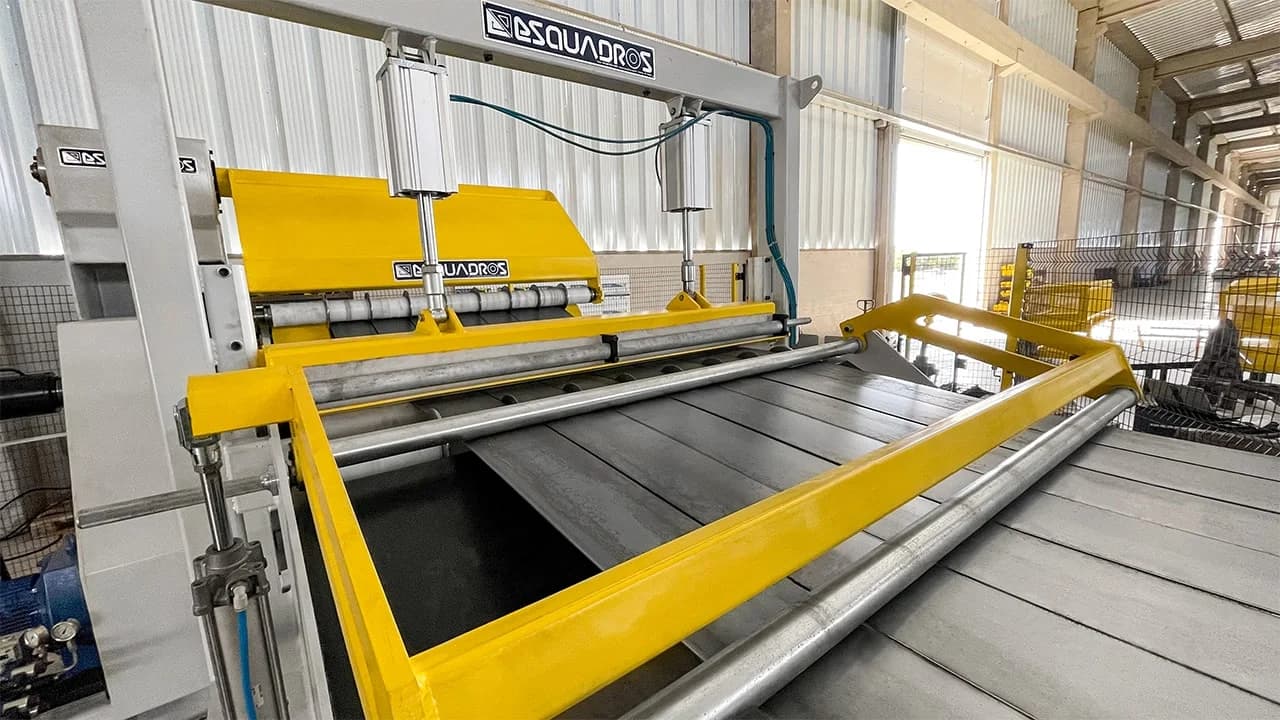

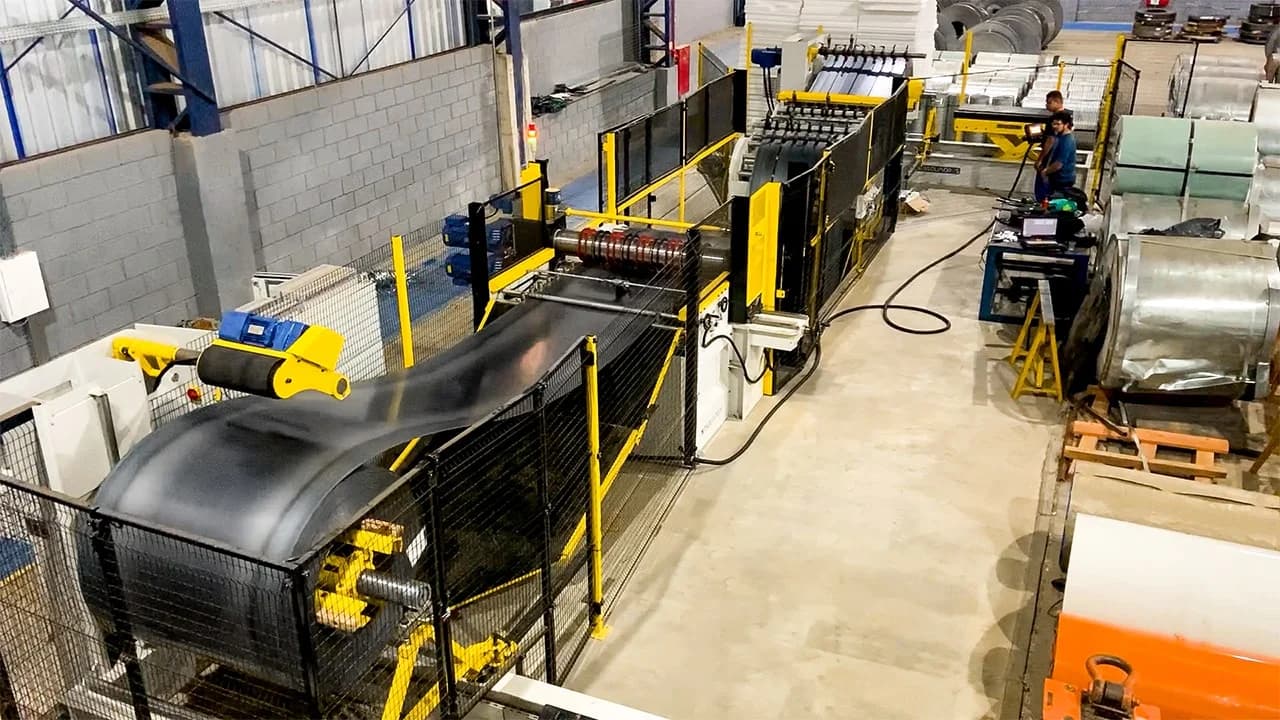

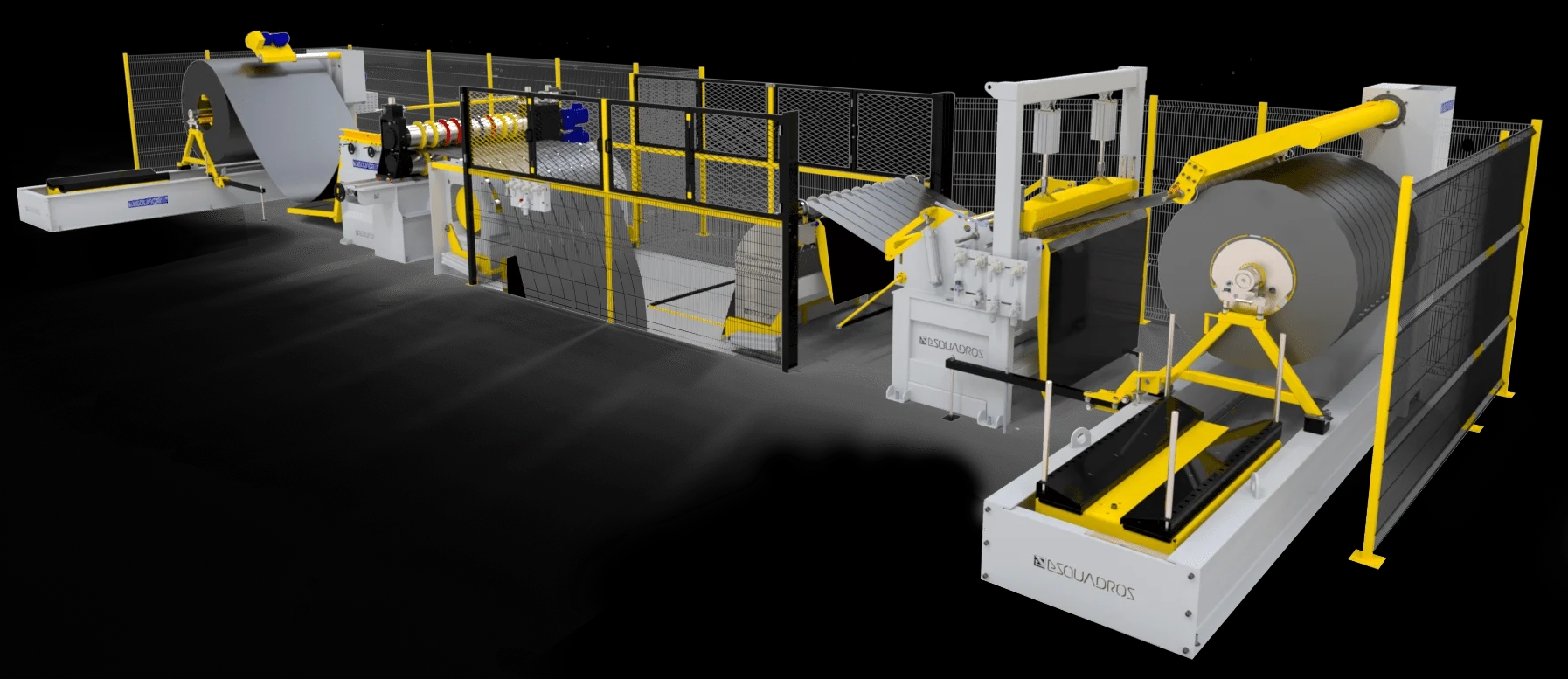

LCL 1300/1600.3E
Pin 1
Pin 2
Pin 3
Pin 4
Pin 5
Pin 6
Pin 7
Pin 8
Pin 9
Pin 10
Pin 11

TECHNICAL INFO

EQUIPMENT:1300/1600.3E SLITTING LINE
DECOILER CAPACITY(ton):15 TONS
MAXIMUM COIL WIDTH:1.300/1.600 mm
MAXIMUM SHEET THICKNESS:3,20 mm
MINIMUM SHEET THICKNESS:0,45 mm
MAXIMUM OUTFLOW LIMIT (L.E):240 N/mm2
MAXIMUM RESISTANCE LIMIT (L.R):360 N/mm2
SPEED:25-60 m/min
ELECTRONIC POSITIONING SYSTEM:Closed loop
VOLTAGE/ FREQUENCY/ WORK CYCLE:380 V / 60Hz / 8h
LINE PAINTING:EPOXY GRAY RAL 7035 - YELLOW 5Y8/12

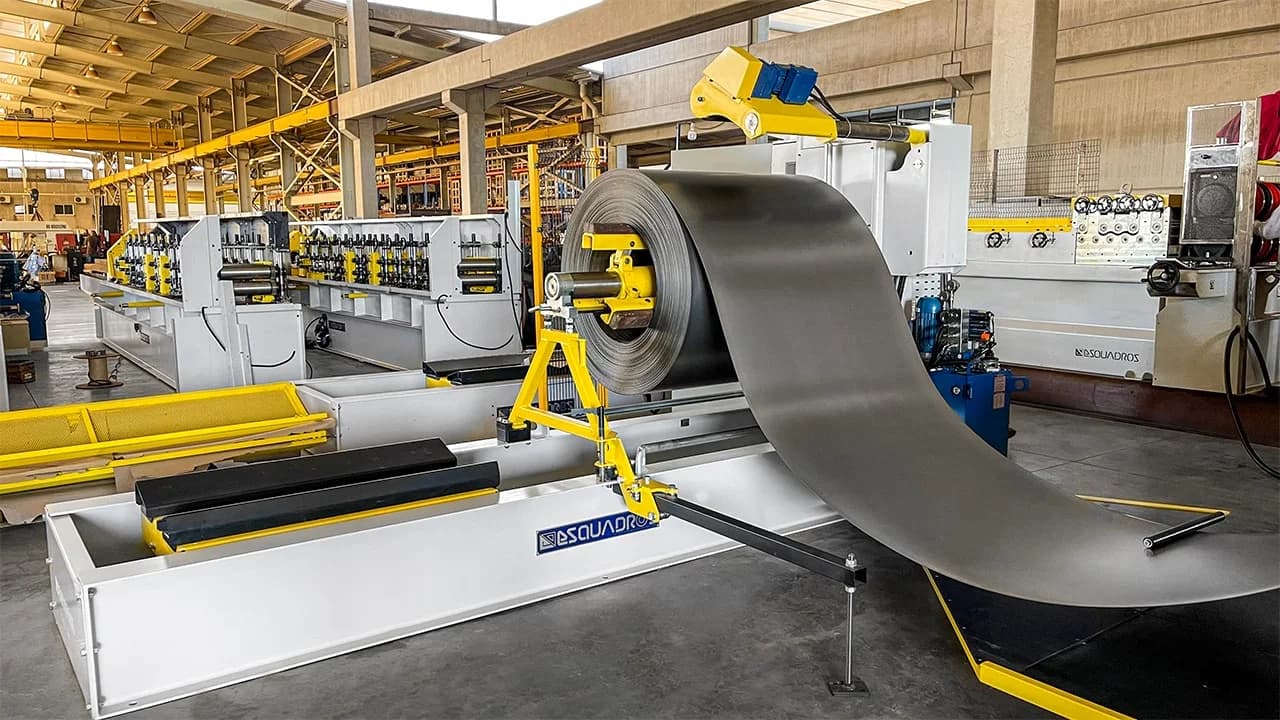

PRO DECOILER - 15 TON

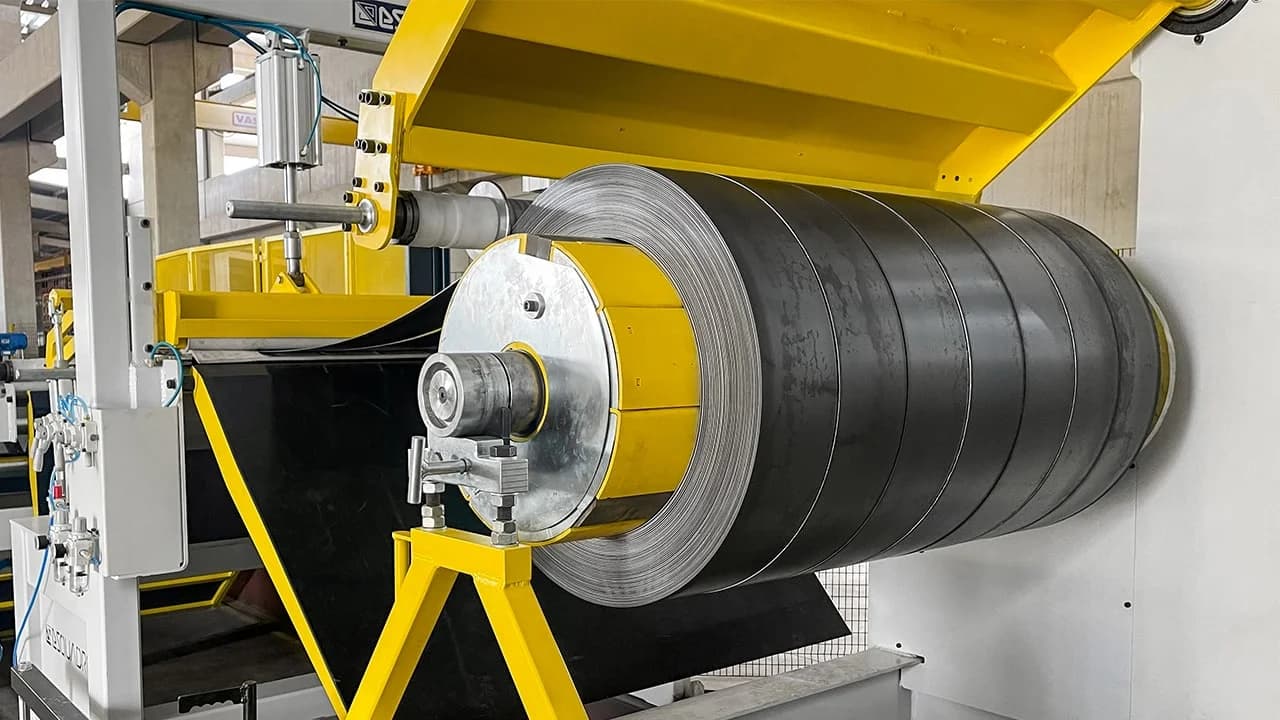

The decoiler has a robust, welded steel structure and counter-supporting shaft support. The mandrel is made up of three paddles which guarantee perfect coil fixation. Roller bearings. By turning a single nut on the main shaft, the mandrel expands in diameter and adjusts to the internal diameter of the coil, ensuring a centralized fixation. The machine is epoxy painted in standard gray ral 7035 and yellow 5Y8/12.

Load capacity:15.000 kgf
Maximum external diameter of the coil:1.500 mm
Coil inside diameter:20"
Drive:Dragging
Braking:Manual regulation
