Upright Profile Rollforming Machine - Esquadros®

UPRIGHT PROFILE ROLLFORMING MACHINE

Uncoiler PRO/PREMIUM - Esquadros®

UNCOILER PRO/PREMIUM

The Uncoiler features a robust steel structure, welded and supported with an axis counter-support. The mandrel is composed of three blades that ensure the perfect fixation of the coil. Bearing-mounted supports. By turning a single nut on the main axis, the mandrel expands and adjusts to the inner diameter of the coil, ensuring centralized fixation.

Technical characteristics

Uncoiler load capacity:

10,000 kgf

Maximum external diameter of the coil:

1,800 mm

Internal diameter of the coil:

20"

Drive:

Pull

Braking:

Manual Adjustment

FORMING BENCH

Technical specifications:

Number of forming stages (stands): 13 (thirteen) horizontal + 03 (three) vertical + 01 (one) Turkish head for profile calibration. Robust structure, built with welded steel plates, featuring fixation and leveling devices.

DimensionMinimumMaximum
  • Profile base
  • 75
  • 300
  • Side flanges
  • 40
  • 85
  • Reinforced flanges
  • 15
  • 25
  • It includes height adjustment for the upper bearings. The height of the upper shaft is adjusted via handwheels at each forming stage. The machine's rigid construction and precise machining allow the simple installation of the cylindrical forming tooling to be sufficient for profile production.

    Special steel bearings, CNC-machined, with rolling bearings. Hardened hex-flange nuts on all shafts to allow tightening and tooling replacement. Sealed bearing housings. Lubrication fittings for greasing. Shaft assembly made of SAE 4140 steel, CNC-machined.

    The cooling system for forming includes gutters, ducts, pipelines, a reservoir, and a suction pump. Flexible "lockline" hoses in each stage direct the cooling. Drive powered by high-efficiency, low-backlash geared motors controlled by frequency inverters. Initial stages have upper rollers driven by toothed gears.

    Forming bench - Esquadros®
    Quick bearing adjustment - Esquadros®

    QUICK BEARING ADJUSTMENT

    Synchronized height adjustment of the upper bearings allows for a very quick setup. The height of the upper shaft is adjusted by the simple movement of a handwheel, which activates 2 (two) precision reducer boxes, coupled and interlocked, to ensure parallel and uniform up/down movement at each forming stage, requiring less operator experience and time for thickness adjustments.

    TURKISH HEAD FOR “U” AND “C” PROFILES

    Technical Specifications

    Profile width:

    75 to 300 mm

    Minimum / maximum thicknesses:

    2.00 / 4.76 mm


    Turkish head for final calibration of "U" and "C" profiles. Enables:

  • Profile side calibration:
  • -
  • Profile vertical calibration:
  • -

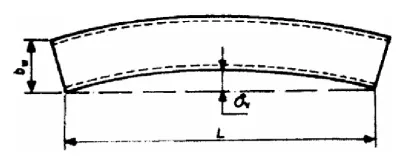

  • Longitudinal bow calibration of the profile:
  • Image table 0

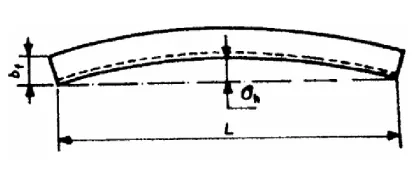

  • Transverse bow calibration of the profile:
  • Image table 0

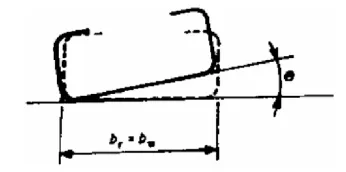

  • Profile twist calibration:
  • Image table 0

    HYDRAULIC SHEAR

    Integrated hydraulic shear. Built from machined, ground, and bolted steel plates, forming a precise and rigid structure. Complete hydraulic unit for activating the main hydraulic cylinder.

    High-quality final product and elimination of material waste with Esquadros cutting technology, featuring blades that do not produce chips/scraps.

    Technical Specifications

    Maximum cross-section:

    3.00 x 400 mm

    Hydraulic unit flow rate:

    40 liters/minute

    Hydraulic shear - Esquadros®

    CUTTING TOOLING FOR PROFILES

    Individual blades that do not generate chips during cutting, made of special D2 steel, heat-treated and ground, with low dimensional and geometric tolerance. Cut by wire electrical discharge machining (EDM). To achieve maximum cutting performance, we recommend a specific blade pair for each profile/thickness combination.

    Cutting tooling for profiles - Esquadros®

    CUTTING TOOLING FOR PROFILES < 200 MM

    NO. OF BLADESPROFILE "U"PROFILE "C"THICKNESS
  • -
  • A x B
  • A x B x C
  • min - max
  • 02
  • 75 x 40
  • 75 x 40 x 15
  • 2.00 mm - 3.00 mm
  • 02
  • 100 x 40
  • 100 x 40 x 17
  • 2.00 mm - 3.00 mm
  • 02
  • 100 x 50
  • 100 x 50 x 17
  • 2.00 mm - 3.00 mm
  • 02
  • 125 x 50
  • 125 x 50 x 17
  • 2.00 mm - 3.00 mm
  • 02
  • 150 x 40/50/60
  • 150 x 60 x 20
  • 2.00 mm - 4.76 mm
  • 02
  • 200 x 50/75
  • 200 x 75 x 25
  • 2.00 mm - 4.76 mm
  • 02
  • 200 x 85
  • 200 x 85 x 20
  • 3.00 mm - 4.76 mm
  • CUTTING TOOLING FOR PROFILES > 200 MM

    NO. OF BLADESPROFILE "U"PROFILE "C"THICKNESS
  • -
  • A x B
  • A x B x C
  • min - max
  • 02
  • 250 x 75
  • 250 x 75 x 25
  • 3.00 mm - 4.76 mm
  • 02
  • 250 x 85
  • 250 x 85 x 25
  • 3.00 mm - 4.76 mm
  • 02
  • 300 x 75
  • 300 x 75 x 25
  • 3.00 mm - 4.76 mm
  • 02
  • 300 x 85
  • 300 x 85 x 25
  • 3.00 mm - 4.76 mm
