SLAT ROLL FORMER
FOR ROLLING DOORS
UNCOILER

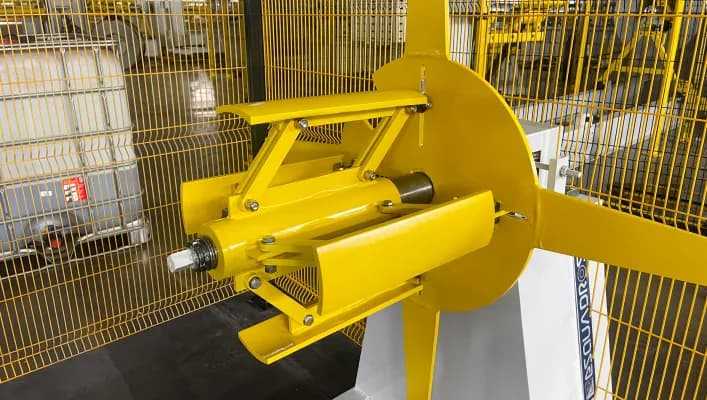

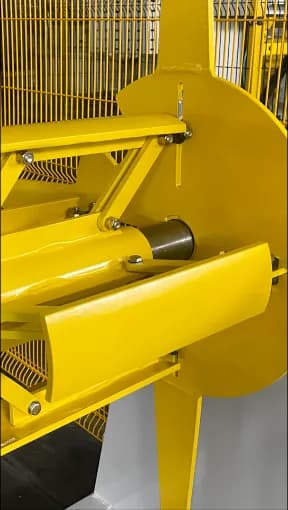

The uncoiler features a robust steel structure, welded. The mandrel is composed of three blades that ensure perfect coil fixation. Bearing-mounted supports. By turning a single nut on the main shaft, the mandrel expands and adjusts to the inner diameter of the coil, ensuring centralized fixation. The machine is coated with epoxy paint in standard colors gray RAL 7035 and yellow 5Y8/12.
FORMING BENCH

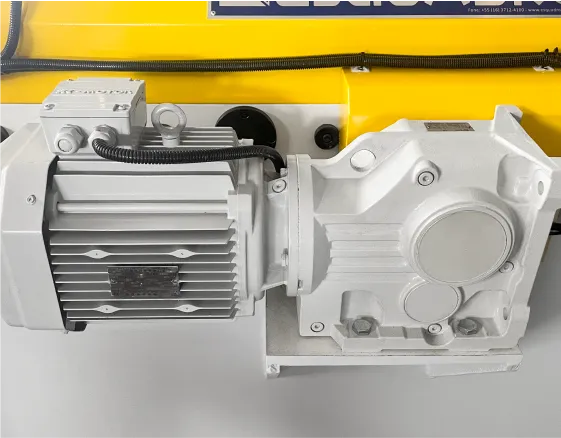

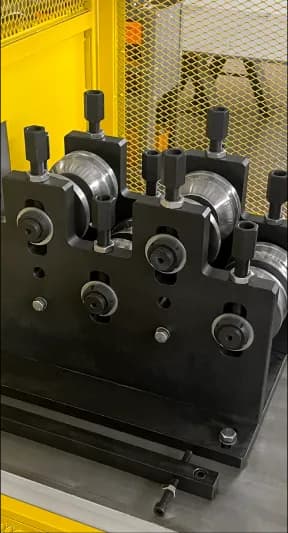

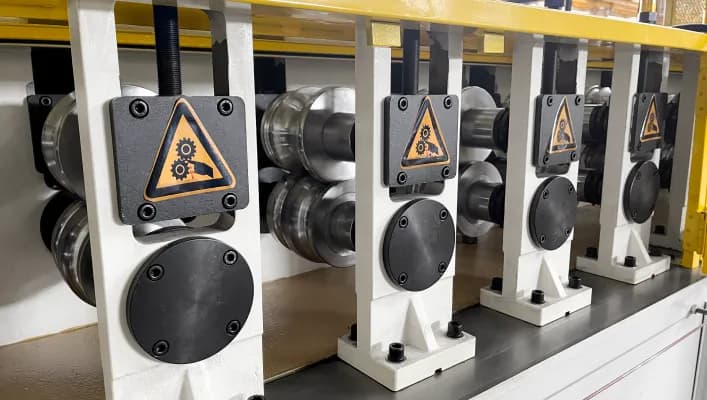

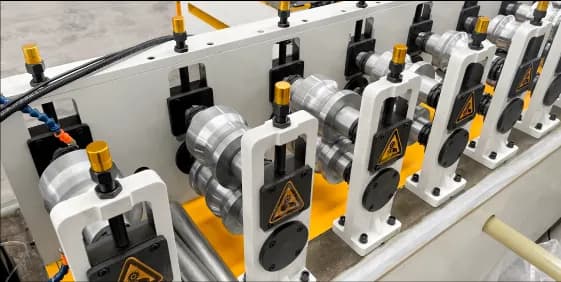

Robust structure, built with welded steel plates, featuring devices for fixation and leveling. It includes height adjustment for the upper bearing blocks. The height adjustment of the upper shaft is performed using a torque key on shafts coupled to the upper shaft bearing at each forming stage. CNC-machined steel bearing blocks with bearings. Driven by a high-efficiency, low-backlash geared motor controlled by a frequency inverter. Synchronized transmission across all forming stages using chains.
FLYING SHEAR

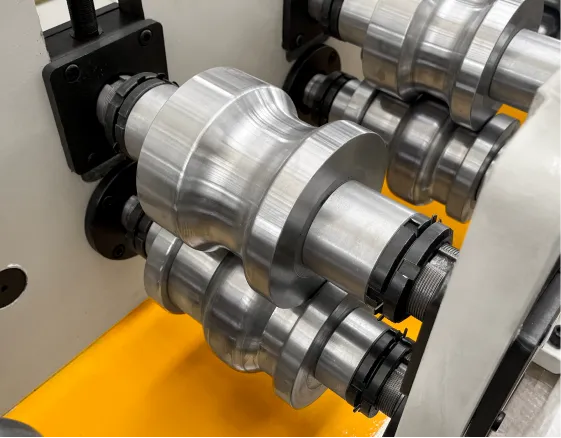

Rollers made of SAE 4140 alloy steel, heat-treated, and CNC machined, for manufacturing "C" profiles 38X38X8 and 38X19X8 with embossing. Dimensional and geometric profile tolerances as per Esquadros standard.
The forming tools will be manufactured considering a clearance of one (1) thickness (1.20 mm). Other thicknesses can be produced by adjusting the vertical height of the stands, which may result in variations in the internal radius between profiles of different thicknesses.

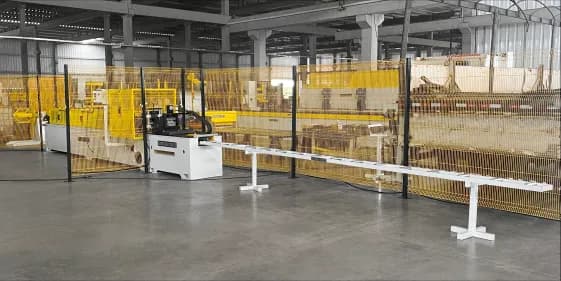

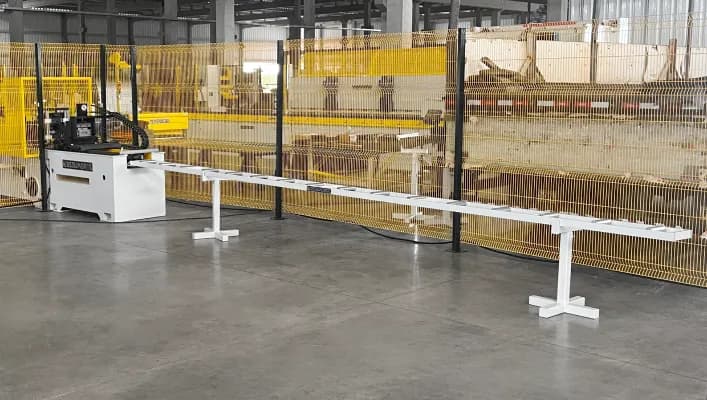

OUTPUT TABLE

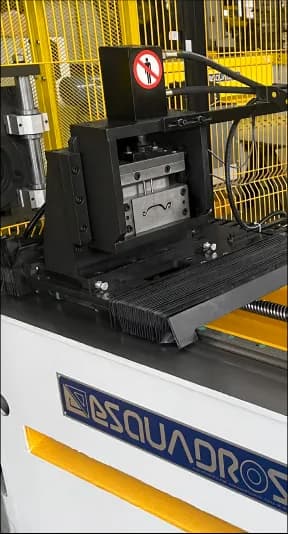

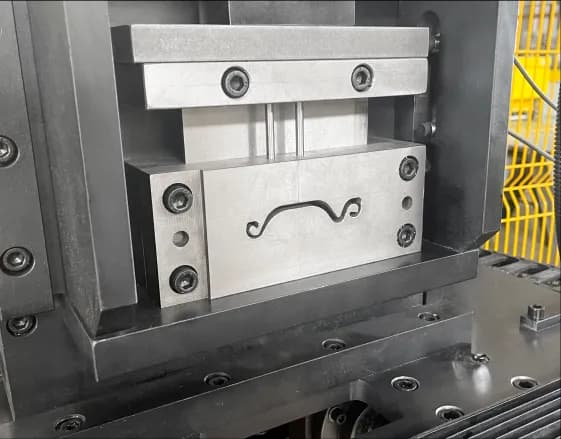

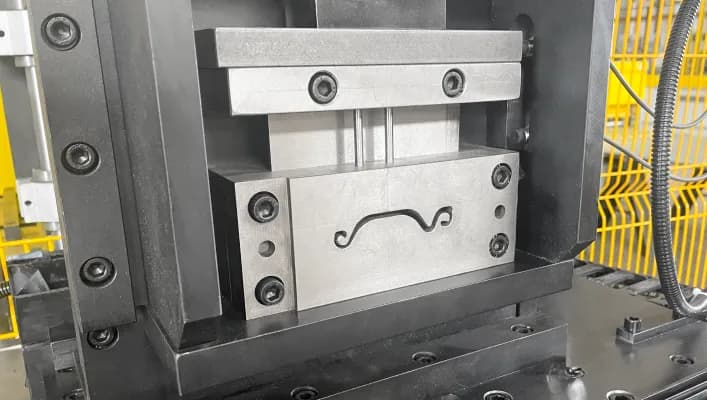

Integrated shear. Constructed with machined, ground, and bolted steel plates, forming a precise and rigid structure. Includes cutting tools made of VD2 steel.

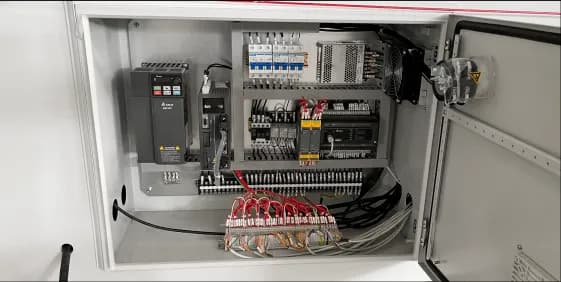

CENTRAL CONTROL PANEL

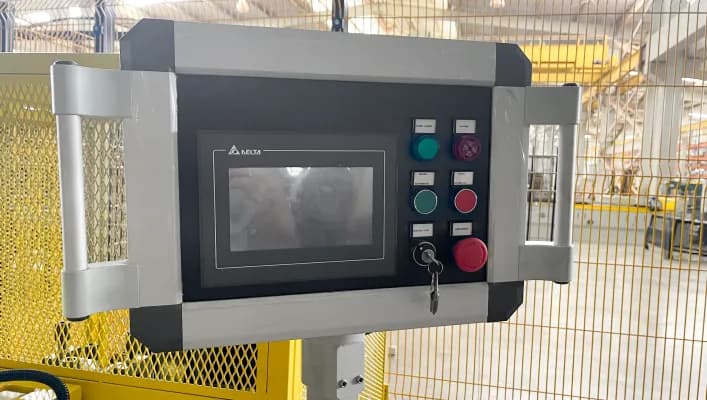

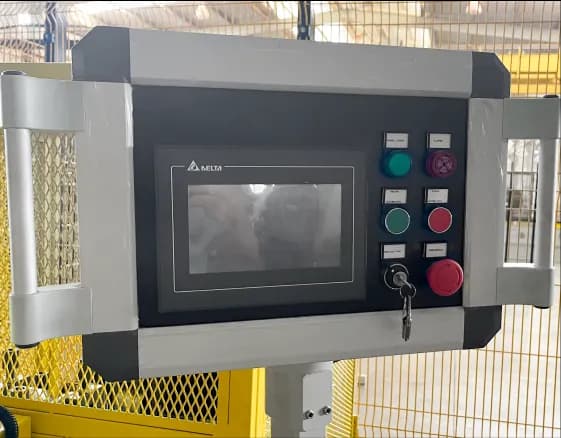

All main operating functions of the Line are controlled via the latest generation, colorful, touch-screen HMI (human-machine interface). The options on each screen make operation extremely simple. On the Panel, speed, length, recipe registration, and much more can be easily configured or monitored.
